Eagle Lay Out Editor
Aula 03:  Barra de Ferramentas e Bibliotecas
Referencias
Selecionando o projeto Fonte se abrirá a janela da figura 1 na qual aparecerá  a área de trabalho do editor de  esquemas e seus principais grupos de comandos.

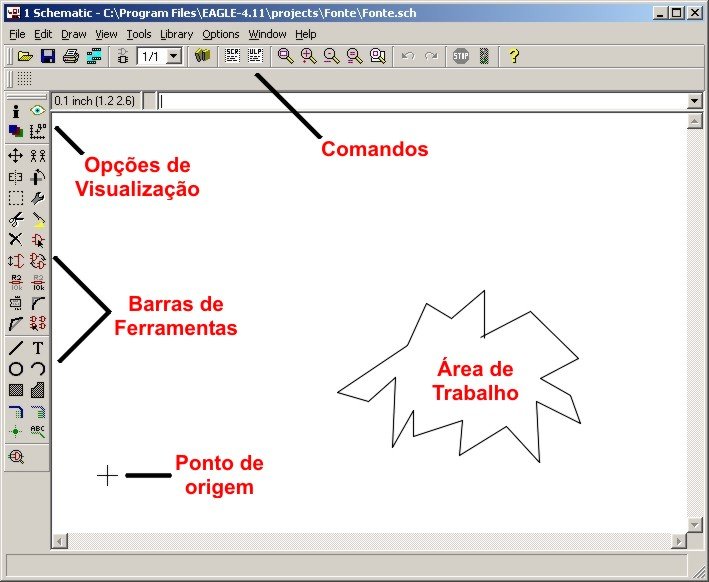

Figura 1 -  Area de trabalho do editor de esquemas

     Adiante  explicaremos a função dos principais comandos da barra de ferramentas.
     Dando seqüência ao nosso projeto, iremos iniciar  o desenho do esquema partindo da seleção  e posicionamento  dos componentes. Os componentes eletrônicos disponíveis estão  agrupados por similaridade e/ou fabricante e organizados em ordem alfabética,  em arquivos independentes denominados bibliotecas
Portanto, para se utilizar um determinado componente é necessário  conhecer a qual biblioteca ele pertence e “carregá-la” para dentro do  Eagle.Indo em Library >> Use” você poderá verificar que o Eagle  já carregou todas as bibliotecas  disponíveis. ou clicando no ícone


  A descrição de cada uma delas pode ser vista  na listagem abaixo. As linhas em negrito destacam as bibliotecas mais usuais.

Library
Pack
Dev
Content
19INCH
              20
23
Eurocards with VG connectors
40XX
             3
73
CMOS 40xx-Series              CMOS Logic,
40XXSMD
              3
72
              Same as above, but with              SMD packages
41XX
1
              7
CMOS 41xx-Series CMOS              Logic,
41XXSMD
1
7 Same as above, but with              SMD packages
45XX
459 CMOS 45xx-Series CMOS              Logic,
45XXSMD
459 Same as above, but with              SMD packages
74XX
11342 TTL 74xx-Series              TTL Logic,
74XXSMD
8342 Same as above, but with              SMD packages
751XX
311 TTL 75xx-Series TTL Logic,
751XXSMD
311 Same as above, but with              SMD packages
ACL
872 Texas Inst. ACL Logic,
BATTERY

3851 Lithium batteries, NC              accumulators
BURR
53318 Burr-Brown components
BUSBAR
1818 Schroff bus bars
BUZZER
3333 Buzzers, SMD
CAP
5633 Capacitors
CAP-FE
2524 Interference suppression              capacitors
CAP-TANT
3838 Tantal capacitors
CAP-WI
5049 Capacitors from WIMA
CON-DIL
1020 DIL connectors for ribbon              cables
CON-LSTA
4647               Pinhead connectors, female
CON-LSTB
3940 Pinhead connectors, male
CON-ML
2136 ML connectors
CON-MSF
1616 MSF connectors, grid 2.5mm
CON-MT
4038 MT connectors from AMP
CON-MT6
1212 MT6 crimp connectors from              AMP
CON-RIB
1515 Ribbon cables 2.8 / 4.8              / 6.3mm
CON-VG
2135 VG connectors from HARTING
CONNSIMM
99 SIMM connectors from AMP
CONQUICK
3060 Quick connectors from              AMP
DC-DC
67 DC-DC converters
DEMO
1014 Demo library
DIL
320 DIL packages, Octagon              63 Mil/drill 32 Mil
DIL-E
320 DIL packages, YLongOct
DILSWTSCH
6983 DIL switches, encoder              switches
DIODE
138153 Diodes
DISCRETE
4466 Discrete components              (R,C...) –              more details at the end of list
DISP-HP
2642 Display components              from HP
DISP-LCD
99 LCD’s from DATA MODU
DRAM
216 DRAM’s from Motorola
ECL
354 ECL components from Texas              Instr. and Motorola
EXAR
3108 Exar components
FET
2552 FET’s
FIB-HP
512 Fiber optic components,              HP
FIB-SI
34               Fiber optic components,              Siemens
FIFO
715 FIFO components
FRAMES
010 Drawing frames for schematics
FUJITSU
2571 Fujitsu
FUSE
2121 Fuses
HARRIS
1143 Microprocessor products              from Harris
HEATSINK
3030 Heatsinks
HIRSCHM
2222               Hirschmann diodes; LS,              Scart connectors etc.
HOLES
377 Assembly holes
IC
500 DIL packages, Octagon              55 Mil
IDTCMOS
51300               IDT products
IND-A
6969               Inductors, Trafo ETD29
IND-B
3915 Ferrite cores, Siemens
INTEL
1572 Microprocessor products              from Intel
INTELPLD
57 PLD’s from Intel
JUMPER
1918 Bridges for single              layer boards, SMD sold
JUMPS
2125 Jumpers and jumper              connectors
KEY
3029 Keys from RAFI and ITT
KEYOMRON
99                OMRON keys
LED
2727 LED’s
LINEAR
20213 Analog components
M68000
1118 68000 family components
MARKS
180 Crop marks, reference              marks
MAXIM
23339 MAXIM components
MEMHITCH
1351 Hitachi               memory component
MEMNEC
1029 NEC memory components
MEMORY
959 Generic memory components
MOTOROLA
751 Motorola microprocessor              products
NPN
27100 NPN transistors
OPTO-TRA
1212 Opto transistors              from Siemens
OPTOCPL
971 Opto couplers
PAL
345 PAL’s,    Monolithic Memorie
PHO500
518 PHOENIX               clamp connectors
PHO508B
1111 PHOENIX               clamp connectors
PHO508C
97 PHOENIX               clamp connectors
PHO508D
2621 PHOENIX               clamp connectors
PHO508E
4640 PHOENIX               clamp connectors
PIC
13154 Microchip PIC controllers
PINH-H
1118 Pinhead connectors with              lever, horizontal
PINH-V
1118               Pinhead connectors with              lever, vertical
PINHEAD
8547 Pinhead connectors
PLCCPACK
110 PLCC packages
PNP
2758 PNP transistors
POLCAP
5656 Polarized capacitors
PTC-NTC
1011 PTC’s and NTC’s
PTR500
3333PTR clamp connectors
QUARTZ
2527 Quartzes, generators,              SMD
R
4027 Resistors
R-DIL
28 Resistor networks, DIL
R-PWR
333 Power resistors
R-SIL
1145 Resistor networks, SIL
RECTIF
3333 Rectifier bridges
RELAIS
4743 Relays
RIBCON
2020 PC board connectors
RIBCON4
66 4-row pc board connectors
SIEMENS
2845 Siemens components
SMD
260 SMD packages
SMD-IC
760 SMD packages
SMD-SPC
270 SMD packages
SOLPAD
1616 Soldering pads
SPECIAL
7426 Special devices,              transformer, fuse, lamp, etc.
SRAM
621 Static RAM’s from Motorola
SUBD-A
3264 Sub-D connectors, 9 to              37 pins
SUBD-B
88 Sub-D connectors, 50 pins
SUPPLY1
014 Supply symbols
SUPPLY2
044 Supply symbols
SWITCH
2220 Rotary switches,              toggle switches
TESTPAD
1212 Test areas, test              pins
TRAFO-B
4751 BLOCK transformers
TRAFO-E
2525 ERA transformers
TRAFO-R
33 Ring core transformers
TRANS-SM
6452 Small power transformers
TRANS-PW
5339               Power Transformers
TRIAC
3219              Thyristors, triacs
TRIMPOT
4342 Trimmpots
ULN
224 ULN ICs
V-REG
3623 Voltage regulators
VARIST
7878 Siemens varistors
WAGO500
1111 WAGO clamp connectors,              grid 5.00mm
WAGO508
1716 WAGO clamp connectors,              grid 5.08mm
WIREPAD
1915 Pads for connecting              wires
WSIPSD
883 WSI components
ZILOG
27 Zilog components
A seguir detalhes da biblioteca “DISCRETE”
            Obs: essa biblioteca não é encontrada em versões  mais novas, clique aqui para obter essa biblioteca Discrete



 CAP
Ceramic capacitors
CAPNP
Capacitor No Polarity
CAPTRIM
Trim Capacitors
CAPUS
U.S.               symbol version
DIODE
Diodes
ELC
Tantalum capacitors              or Electrolytic
L
Inductor
POT
Potentionometers              EURO
POTUS
             Potentionometers               U.S.  symbol
POT-TRIM
             Potentionometer              for multiple turns, i.e. 20 turn POT
RESEU
Resistor EURO symbol
RESUS
             Resistor               U.S.  symbol
RESVAR
Resistor variable
RN
Resistor networks
THERM
Thermistors
VARIST
Varistors
ZDIO
Zener diodes
      Como pudemos  observar, em função da quantidade de bibliotecas, componentes  e combinações entre os grupos, inicialmente haverá certa  dificuldade em localizar o componente desejado. Além disto, uma vez localizado,  deveremos decidir sobre qual dentre as variações apresentadas  é a mais adequada.
 Obviamente  que a prática irá minimizar esta questão, mas os iniciantes  podem (e devem) se utilizar das informações mostradas na tela  à direita quando selecionamos uma biblioteca qualquer ou um componente  dentro da mesma.
